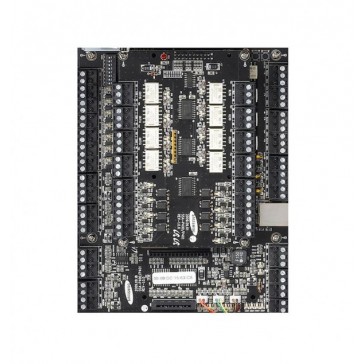

SSA-P400(T)
Samsung Intelligent 4 door access control panel with TCP/IP support (T). 125KHz.
Description
Samsung Intelligent controller,
RS-232/422/485, TCP/IP (T),
Samsung Format,
4 reader ports,
Antipassback,
15 Inputs, 15 Outputs,
Arm/Disarm of Alarm panel,
Tamper switch,
upto 50,000 users
Files For Product
Henüz herhangi bir dosya yüklenmedi!
User Manuals For Product
Henüz herhangi bir dosya yüklenmedi!
Catalogues For Product
Henüz herhangi bir dosya yüklenmedi!
Firmware For Product
Henüz herhangi bir dosya yüklenmedi!
Softwares For Product
Henüz herhangi bir dosya yüklenmedi!
Certificates For Product
Henüz herhangi bir dosya yüklenmedi!
A&E Documents For Product
Henüz herhangi bir dosya yüklenmedi!
Videos For Product
Video is not found!
Technical Form For Product
Technical Sheets For Product
Henüz herhangi bir dosya yüklenmedi!
Others For Product
Henüz herhangi bir dosya yüklenmedi!
Input Output
-
Reader Port : 4ea (26/34 bit wiegand, 4/8 bit burst for PIN), 26 bit wiegand : SSA-P4x0 (T), 34bit wiegand : SSA-P4x1 (T)
-
Output Port 1 : 12ea (2 form-C relay output / 12V ~ 18V DC, Rating max. 2A)
-
Output Port 2 : 3ea (TTL output / 5V DC, Rating max. 20mA)
-
LED Indicator : 38ea LED indicator (Red, Green, Yellow)
Operational
-
Communication : TCP/IP : SSA-P4xxT / , RS-232, RS-422, RS-485 (Max. 32CH)
User Event Buffer
-
Total ID Users : Up to 50,000 users (Default : 20,000)
-
Event Buffer : Up to 29,500 event buffer (Default : 29,500)
Time Schedules
Electrical
-
Input Voltage-Current : 12V DC / Max. 430mA
-
Power Consumption : Max 5.2W
Environmental
-
Operating Temperature : 0°C ~ +50°C (+32°F ~ +122°F)
-
Operating Humidity : Less than 90% RH
Mechanical
-
Colour-Material : Black / PCB
-
Dimensions WxHxD : 145.0 x 185.0 x 18.0mm (5.71" x 7.28" x 0.71"
