SNP-3370

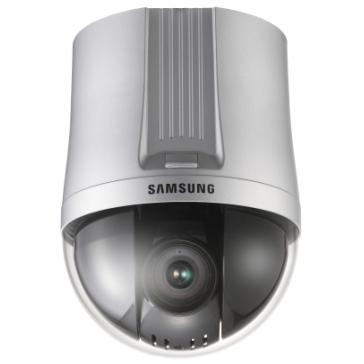

Samsung 4CIF 37x Network PTZ Dome Kamera
Ürün Açıklaması
SAMSUNG SNP-3370 37X 4CIF SPEED DOME KAMERA
25ips @ 4-CIF resolution
37X optical zoom (3.5~129.5mm)
Integrated IR-cut filter
Dual streaming (MPEG-4 + MJPEG or H.264 + MJPEG)
Day & night
H.264, MPEG-4 & MJPEG multiple codec
Wide Dynamic Range (WDR)
Built-in SD/SDHC memory card slot
Ürünle ilgili Dosyalar
Henüz herhangi bir dosya yüklenmedi!
Ürünle ilgili Kullanım Kılavuzları
Henüz herhangi bir dosya yüklenmedi!
Ürünle ilgili Kataloglar
Henüz herhangi bir dosya yüklenmedi!
Ürünle ilgili Firmware Dosyaları
Henüz herhangi bir dosya yüklenmedi!
Ürünle ilgili Yazılım Dosyaları
Henüz herhangi bir dosya yüklenmedi!
Ürünle ilgili Sertifikalar
Henüz herhangi bir dosya yüklenmedi!
Ürünle ilgili A&E Dokümanları
Henüz herhangi bir dosya yüklenmedi!
Ürünle ilgili Satın Alma Formu
Ürünle ilgili Teknik Destek Formu
Ürünle ilgili Teknik Şartnameler
Henüz herhangi bir dosya yüklenmedi!
Ürünle ilgili Diğer Dokümanlar
Henüz herhangi bir dosya yüklenmedi!
Pan-Tilt-Rotate
-
Pan Speed : Preset ; 500°/sec, Manual : 0.024°/sec~ 120°/sec
-
Tilt Range : 190° (-5° ~ 185°)
-
Tilt Speed : Preset : 500°/sec, Manual : 0.024°/sec ~ 120°/sec
Network
-
Ethernet : RJ-45 (10/100BASE-T)
-
Video Compression Format : H.264, MPEG-4, MJPEG
-
Resolution : 704 x 480, 352 x 240, 176 x 120
-
Video Quality Adjustment : H.264, MPEG-4: 5 level (Very low, Low, Medium, High, Very high) MJPEG : 5 level (Very low, Low, Medium, High, Very high)
-
Bitrate Control Method : CBR only
-
Steaming Capacity : Dual streaming (MPEG-4 + MJPEG or H.264 + MJPEG)
-
Audio I-O : Line in / Line out
-
Audio Compression Format : ADPCM
-
Audio Communication : Bi-directional audio
-
Protocol : TCP/IP, UDP/IP, RTP, RTSP, NTP, HTTP, DHCP, FTP, SMTP, ICMP, IGMP, ARP, DNS, DDNS
-
Security : Password protection, IP address filtering, User access log
-
Streaming Method : Unicast /Multicast
-
Max User Access : 10 users
-
Memory Slot : SD/SDHC memory slot
-
Web Viewer : Supported OS : Windows XP /VISTA/7Supported Browser: Internet Explorer 6.0 or Higher
-
Central Management Software : NET-i-viewer
Operational
-
On Screen Display : English
-
Day And Night : Auto (ICR) /Colour / B/W
-
Backlight Compensation : Off / BLC/ WDR / HLC
-
Wide Dynamic Range : 128x , 52dB
-
Digital Noise Reduction : 3D noise filter (Off / Low / Medium / High)
-
Digital ImageS tabilization : Off / On
-
Privacy Masking : Off/ On (8 programmable zones)
-
Sens-up frame integration : Off /Auto (2x ~ 256x)
-
Gain Control : Off / Low / Medium / High
-
White Balance : ATW / AWC / Manual / Indoor /Outdoor
-
Electronic Shutter Speed : Auto (1/60~1/20,000sec) / Manual / A.FLK
-
Flip-Mirror : Digital Flip
-
IVA detail : Appear / Disappear
-
Alarm I-O : Input 4ea /Output 2ea
-
Remote ControlInterface : RS-485/422
-
RS-485 Protocol : Samsung -T/E, Pelco- P/D, Panasonic, Honeywell, AD, Vicon
Video
-
Imaging Devise : 1/4" Vertical double density interline transfer CCD
-
Total Pixels : 811(H) x 508(V)
-
Effective Pixels : 768(H) x 494(V)
-
Scanning System : Interlaced
-
Frequency : H: 15.73KHz /V: 59.94Hz
-
Horizontal Resolution : Colour: 550TV lines
-
MinIllumination TBD : Colour : 0.7Lux (F1.6, 5OIRE), 0.0027Lux (Sens-up 256x) B/W : 0.03Lux (F1.6, 5OIRE), 0.0001Lux (Sens-up 256x)
-
Video Output : CVBS: 1.0Vp-p/75Ocomposite
Lens
-
Focal Length : 3.5 ~ 129.5mm(37x)
-
Max Aperture Ratio : F1.6 (Wide) / F3.9 (Tele)
-
Angular Field of View : H : 55.5° (Wide) ~ 1.59° (Tele) / V : 42.5° (Wide) ~ 1.19° (Tele)
-
Min Object Distance : 1.8m (5.9ft)
-
Focus Control : AF / One-shot AF / Manual
-
Zoom Movement Speed : 2.5x/sec
-
Mount Type : Board-in type
Electrical
-
Input Voltage -Current : 24V AC
-
Power Consumption : Max 16W
Environmental
-
Operating Temperature-Humidity : -10°C ~+50°C (-14°F ~ +122°F) / 20% 80% RH
Chipset
Mechanical
-
Colour-Material : Silver/ Plastic
-
Dimensions WxHxD : Ø155.0 x 243.4mm (Ø6.1" x 9.58")
